Scenario Generation from OpenCTI Security Coverage

Overview

OpenAEV can automatically generate scenarios from OpenCTI Security Coverage entities, transforming threat intelligence, such as Attack Patterns, Vulnerabilities, Artifacts, and others, into actionable operational scenarios.

This integration enables organizations to track simulation results and security coverage directly within OpenCTI, creating a complete feedback loop between threat intelligence and security validation.

This integration works across multiple OpenCTI entity types:

• Reports
• Incident Response
• Incidents
• Campaigns
• Intrusion Sets
• Groupings

How It Works

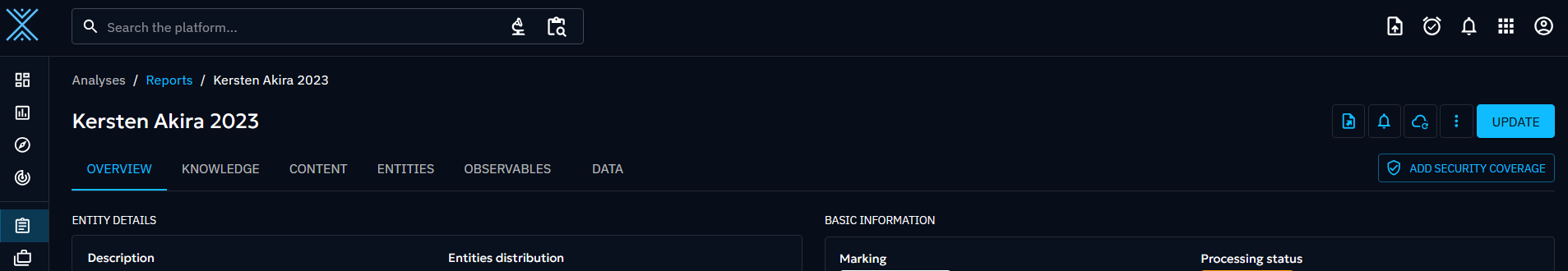

When you click on the Add Security Coverage button in OpenCTI (see OpenCTI documentation), OpenAEV receives a STIX 2.1 bundle representing the Security Coverage.

OpenAEV then:

1. Parses the STIX object
2. Builds a scenario in OpenAEV

Note: At time of writing, the automated Security Coverage feature can assess coverage for the following entities: Attack Patterns

1. Extracts relevant Attack Patterns references
2. Resolves Asset Groups using Custom Tag Rule labeled opencti, extracting the associated platforms and architectures to match compatible payloads.
3. Generates injects for each extracted entity
4. Schedules the scenario for execution

STIX Fields Used for Scenario Creation

OpenAEV requires specific fields from the STIX object, divided into Mandatory (id, name, covered_ref) and Optional fields (e.g., description, labels, periodicity) for additional context.

Mandatory Parameters

STIX Field	STIX Path	Description	Used For
id	id	Unique STIX identifier of the Security Coverage	Mapping, de-duplication, externalId
name	name	Name of the Security Coverage	Scenario name in OpenAEV
covered_ref	covered_ref	Reference to the main entity (intrusion-set, malware, report…)	Build external link to OpenCTI

Optional Parameters

STIX Field	STIX Path	Description	Used For
description	description	Description of the Security Coverage	Scenario description
labels	labels[]	Labels/tags from OpenCTI	Tags in scenario and tag rules
periodicity	periodicity	Scheduling frequency (e.g., P1D)	Scenario scheduling
created_at (extension)	extensions.*.created_at	Creation timestamp inside OpenCTI extension	Period start date

How OpenAEV Builds the Scenario

After parsing and validating the Security Coverage STIX object, OpenAEV follows the process below:

• Create or update an OpenAEV scenario

• Extract all references related to Attack Patterns.

  • For each Object Reference identified:

    • If the referenced Attack Pattern exists in OpenAEV
      (matched by External ID or Name) and a related Payload exists that matches the platforms and architectures derived from the Asset groups resolved via Custom Tag Rule labeled opencti.
      => Concrete Inject is created.

    • If the Attack Pattern does not exist in OpenAEV, or no compatible payload exists for the resolved platforms/architectures.

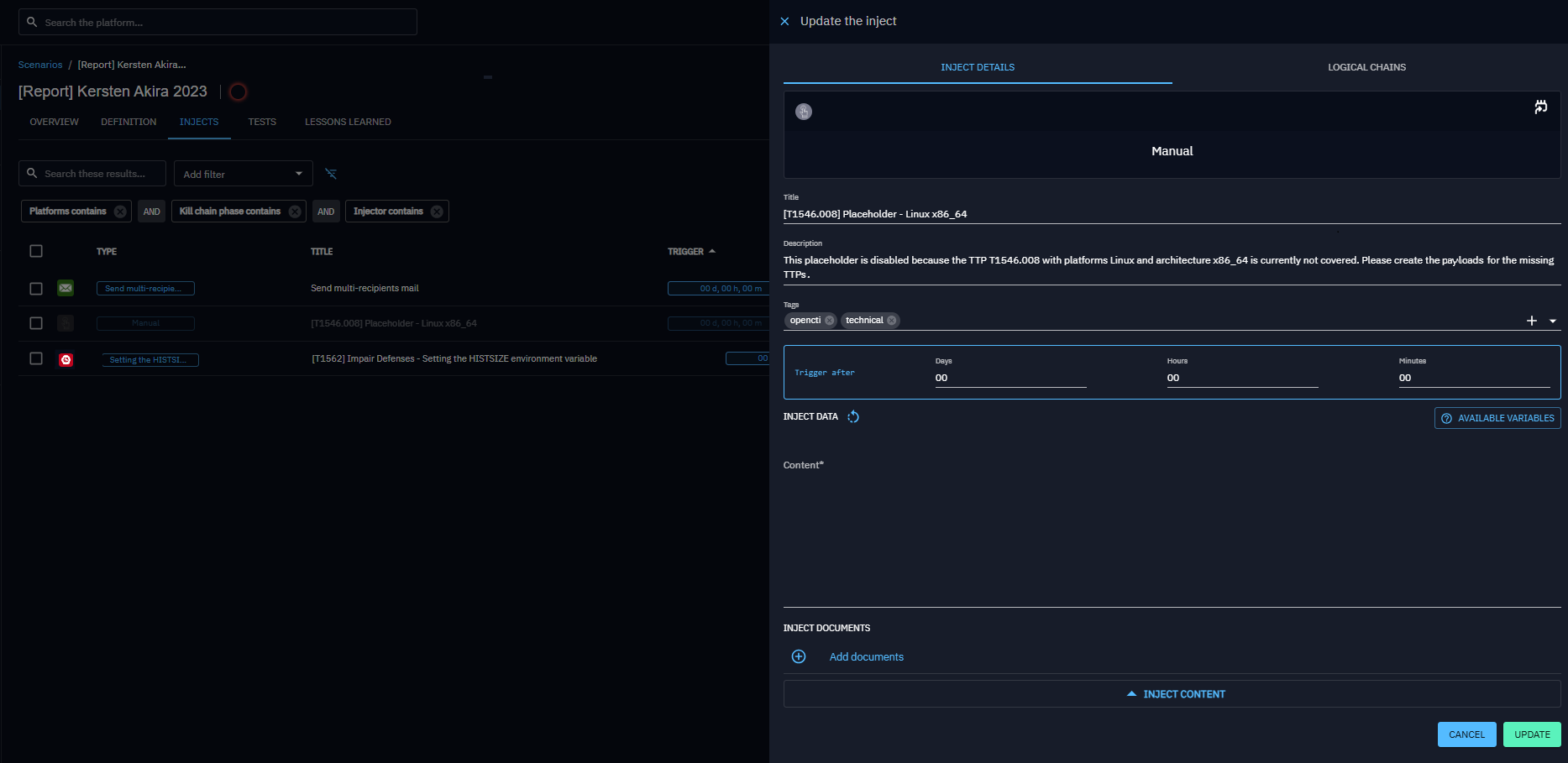

      => Placeholder Inject is created to highlight missing coverage.

Note
To ensure meaningful inject generation:

• Attack Patterns defined in OpenCTI (by External ID or Name) must be aligned with those configured in *OpenAEV *.
• Targets are resolved via Custom Tag Rule labeled opencti, and the corresponding **platforms and architectures ** are extracted from these Asset groups.
• Payloads are matched against the Attack Patterns and must be compatible with the extracted platforms and architectures.

In other words, inject creation only occurs when: 1. The Attack Pattern exists in OpenAEV, and 2. A payload exists that matches both the Attack Pattern and the platforms/architectures derived from the Asset groups defined in the Custom Tag Rules.

If either condition is not met, a Placeholder Inject is created to highlight missing coverage.

Inject creation depends on matching the Object Reference values between OpenCTI and OpenAEV, example:

OpenCTI Attack Pattern (External ID or Name)	Matching Payload in OpenAEV (Attack Pattern + Platform + Architecture)	Result
T1059.001	Yes	Concrete inject created
T1059.001	No	Placeholder inject

After injects are generated:

• Review and customize the Scenario to match your organization’s needs.
• Assign appropriate Asset groups to each inject.
• Optionally, configure default Asset Groups for scenarios created from OpenCTI using the Default Asset Groups page.

• Finally, the Scenario will execute according to its configured schedule.

Execution and Reporting Back to OpenCTI

Once the scenario is finalized and scheduled:

• OpenAEV executes the scenario according to the periodicity.
• After simulation, the results are compiled into new SROs.
• OpenAEV sends these results back to OpenCTI as part of automated Enriched Security Posture Assessment in the same STIX 2.1 bundle representing the Security Coverage.
• OpenCTI displays the updated coverage assessment.

This creates a complete feedback loop between threat intelligence and security validation.

What’s next?

The next step is to expand the integration between OpenCTI and OpenAEV by incorporating additional threat intelligence data, such as Observables, Artifacts, Malware, and more.
