Integration Manager

Introduction

The OpenAEV Integration Manager is a deployment tool that simplifies the management and deployment of external collectors, injectors and executors within the platform.

Info

• Built-in collectors, injectors and executors are natively integrated and do not require the Integration Manager.

Architecture

To learn more about Xtm Composer architecture, refer to the dedicated documentation.

How to use in OpenAEV

Prerequisites

• An Enterprise Edition license is required to use this feature. Without it, the catalog is available in read-only mode. You can enter the license key from:
  • the Deploy action on a collector, injector, or executor card,
  • the collector, injector, or executor's detail view,
  • or the Settings page.

• The Integration Manager must be installed and operational to deploy collectors, injectors or executors.

Built-in and external connectors

You will find two types of connectors in the platform:

• Built-in connectors: Connectors which are internally implemented.
  This category includes:
  • Auto-start connectors, which are natively integrated into the core platform no additional deployment required. These connectors are automatically started and cannot be managed on the UI, even though they are still visible in the dedicated pages.
  • Standard built-in connectors, which are also automatically started but can be started and stopped by the user through the UI.
• External connectors: These are deployed and configured by the user. In the catalog, only external connectors can be retrieved. The following sections focus on how to deploy, configure, and manage these external connectors.

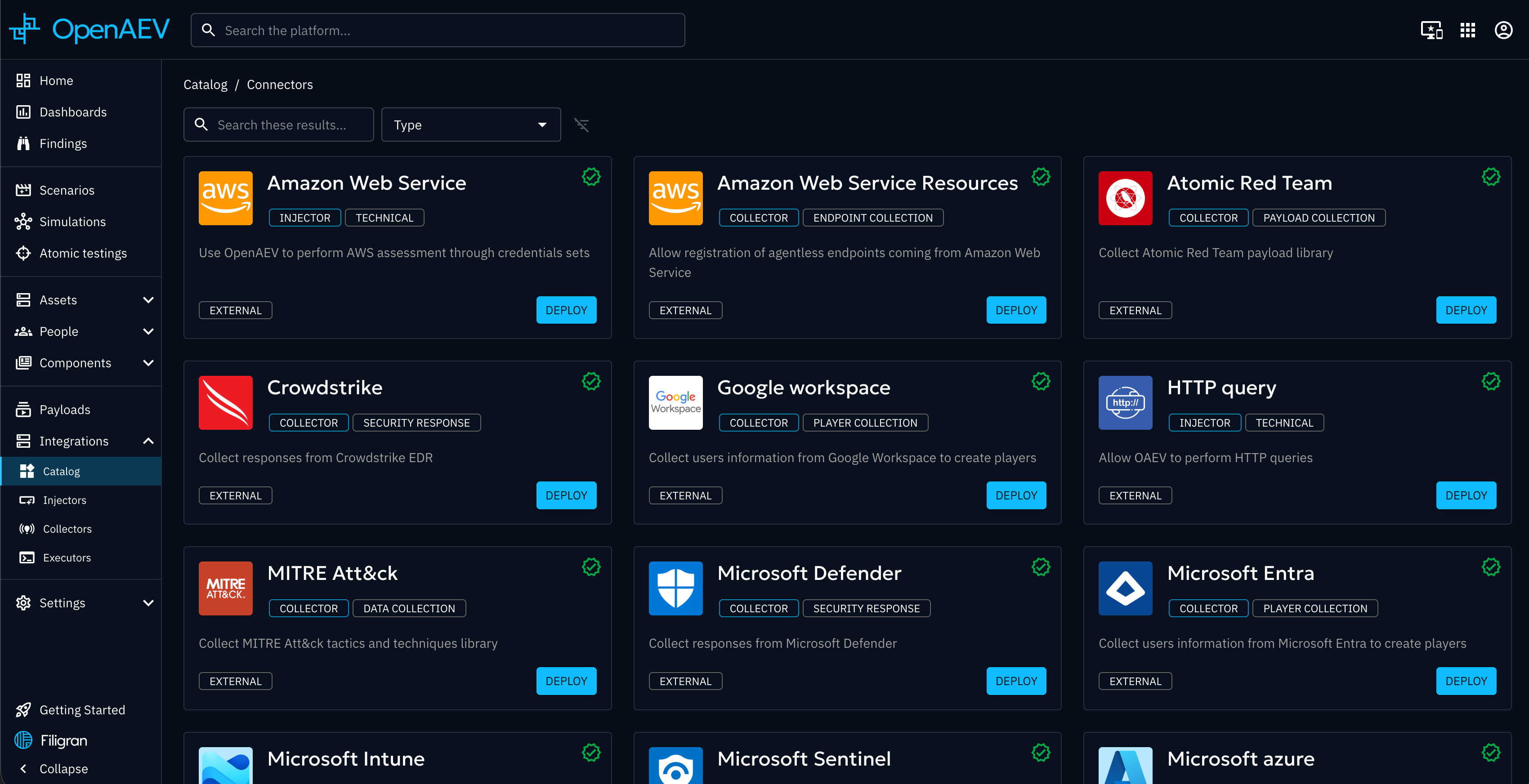

Browsing the catalog

• Navigate to Integrations > Catalog
• Use the search bar to find collectors, injectors and executors by name or description. You can also apply filters (e.g., by collector, executor or injector type).
• If a collector, injector or executor has already been deployed, it will no longer appear in the Catalog. Instead, you’ll find it in its associated page (Collectors, Injectors, or Executors).

Deploying a collector, injector or executor

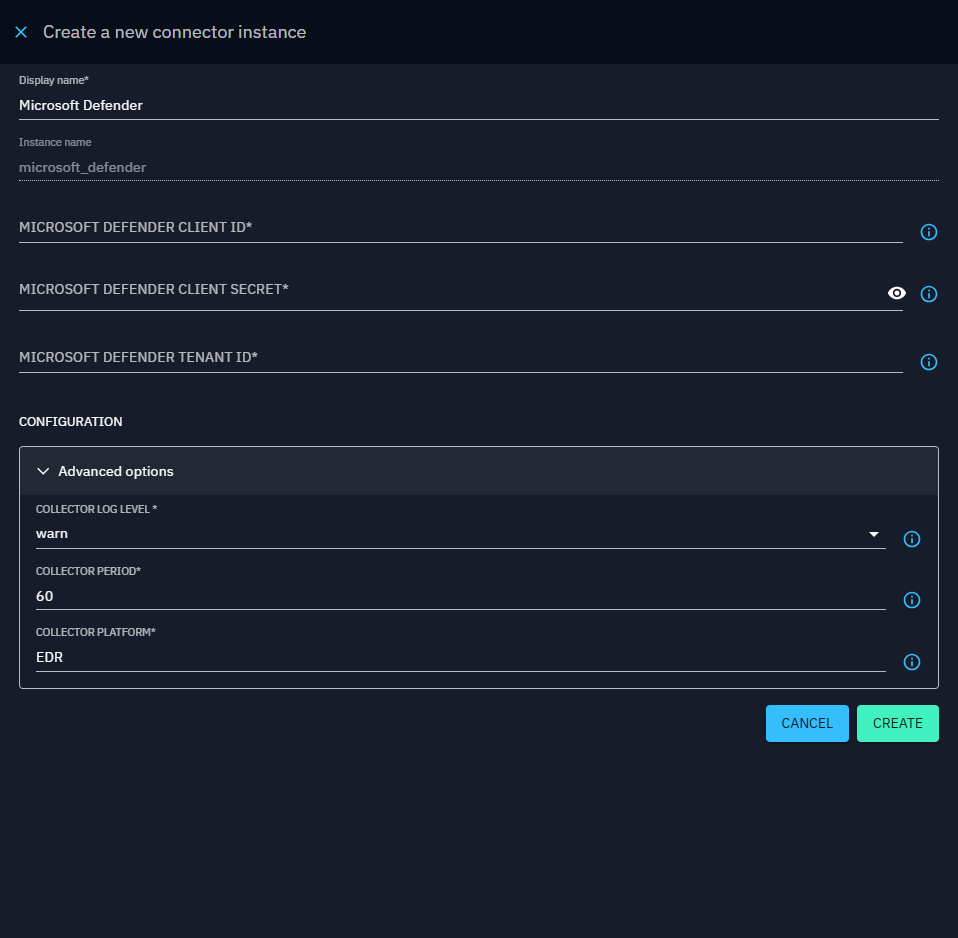

1. Click the Deploy button on an external collector, injector or executor card or from the detail view. A form will appear with required configuration fields.

2. Fill in the required options (you can also expand Advanced options to configure additional settings)

   Configuration information

   • Instance names: Two instances can't share the same name
   • Validation error: If a duplicate name is detected, a blocking error will prevent deployment until a unique name is provided
   • Log level: set the desired confidence log level for the service account.
   • Additional options: collector, injector or executor specific configuration.

3. Click Create. Once the collector is created, you will be redirected to the collector instance view.

   Instance created

   Newly created external collectors, injectors or executors are not started automatically. You can still update their configuration via the Update action.

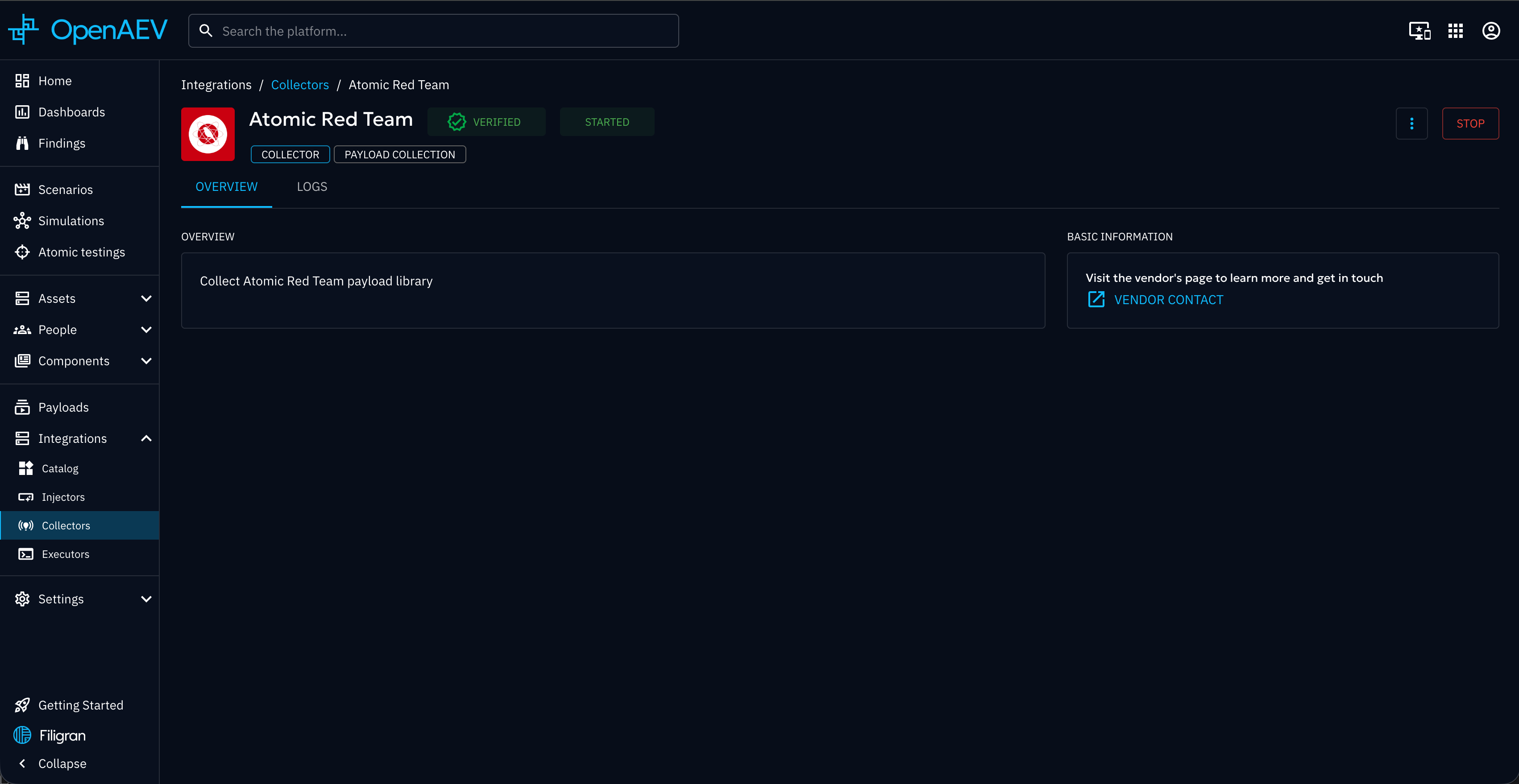

4. When ready, click Start to run it.

5. From the instance view, you can also check the Logs tab. The displayed logs depend on the logging level configured.

Managing the instances

• Different injector, collector or executor types are identified in the catalog:
  • External : Injector, collector or executor managed by the integration manager
  • built-in : Injector, collector or executor natively integrated into the core platform no additional deployment required
• Instances statuses:
  • Managed instances: Started or Stopped.
• Only managed instances can be started/stopped from the UI. They are also the only ones that provide logs in the interface.
• Updating the configuration of a managed instance is possible. Changes will take effect after a short delay.
• For security reasons, API keys/tokens are encrypted when saved and never displayed in the UI afterward.
