Scenario Generation from OpenCTI Security Coverage

Overview

OpenAEV can automatically generate scenarios from OpenCTI Security Coverage entities, transforming threat intelligence, such as Attack Patterns, Vulnerabilities, Artifacts, and others, into actionable operational scenarios.

This integration enables organizations to track simulation results and security coverage directly within OpenCTI, creating a complete feedback loop between threat intelligence and security validation.

This integration works across multiple OpenCTI entity types:

• Reports
• Incident Response
• Incidents
• Campaigns
• Intrusion Sets
• Groupings

How It Works

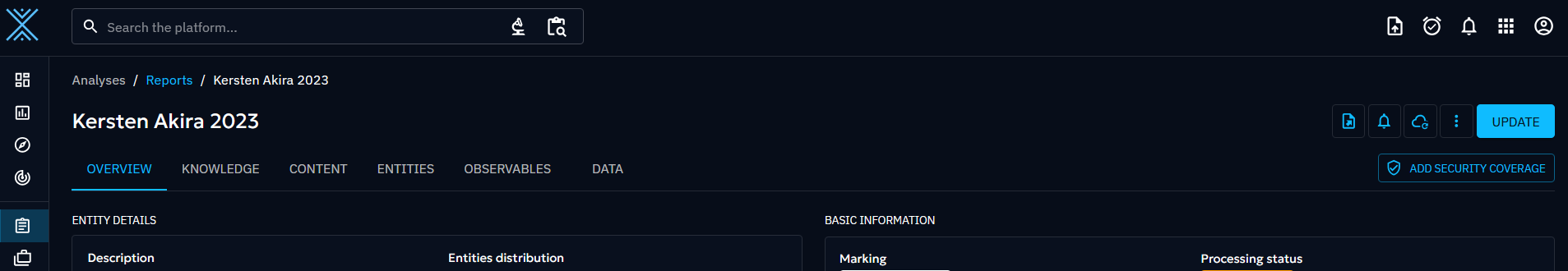

When you click on the Add Security Coverage button in OpenCTI (see OpenCTI documentation), OpenAEV receives a STIX 2.1 bundle representing the Security Coverage.

OpenAEV then:

1. Parses the STIX object
2. Builds a scenario in OpenAEV

   Note: At time of writing, the automated Security Coverage feature can assess coverage for the following entities: Attack Patterns

3. Extracts relevant Attack Patterns references
4. Generates injects for each extracted entity
5. Schedules the scenario for execution

STIX Fields Used for Scenario Creation

OpenAEV requires specific fields from the STIX object, divided into Mandatory (id, name, covered_ref) and Optional fields (e.g., description, labels, periodicity) for additional context.

Mandatory Parameters

STIX Field	STIX Path	Description	Used For
id	id	Unique STIX identifier of the Security Coverage	Mapping, de-duplication, externalId
name	name	Name of the Security Coverage	Scenario name in OpenAEV
covered_ref	covered_ref	Reference to the main entity (intrusion-set, malware, report…)	Build external link to OpenCTI

Optional Parameters

STIX Field	STIX Path	Description	Used For
description	description	Description of the Security Coverage	Scenario description
labels	labels[]	Labels/tags from OpenCTI	Tags in scenario and tag rules
periodicity	periodicity	Scheduling frequency (e.g., P1D)	Scenario scheduling
created_at (extension)	extensions.*.created_at	Creation timestamp inside OpenCTI extension	Period start date

How OpenAEV Builds the Scenario

After parsing and validating the Security Coverage STIX object, OpenAEV follows the process below:

• Create or update an OpenAEV scenario

• Extract all references related to Attack Patterns.

  • For each Object Reference identified:

    • If the referenced Object already exists in OpenAEV as an Attack Pattern and a related Payload is available → a concrete inject is created.

    • If the referenced Object does not exist in OpenAEV → a Placeholder Inject is created to highlight the missing element.

Note: To ensure meaningful inject generation, the Attack Patterns in OpenCTI should be aligned with those configured in OpenAEV.

Inject creation depends on matching the Object Reference values between OpenCTI and OpenAEV, example:

OpenCTI Attack Pattern	Exists in OpenAEV?	Result
T1059.001	Yes	Concrete inject created
T1059.001	No	Placeholder inject created

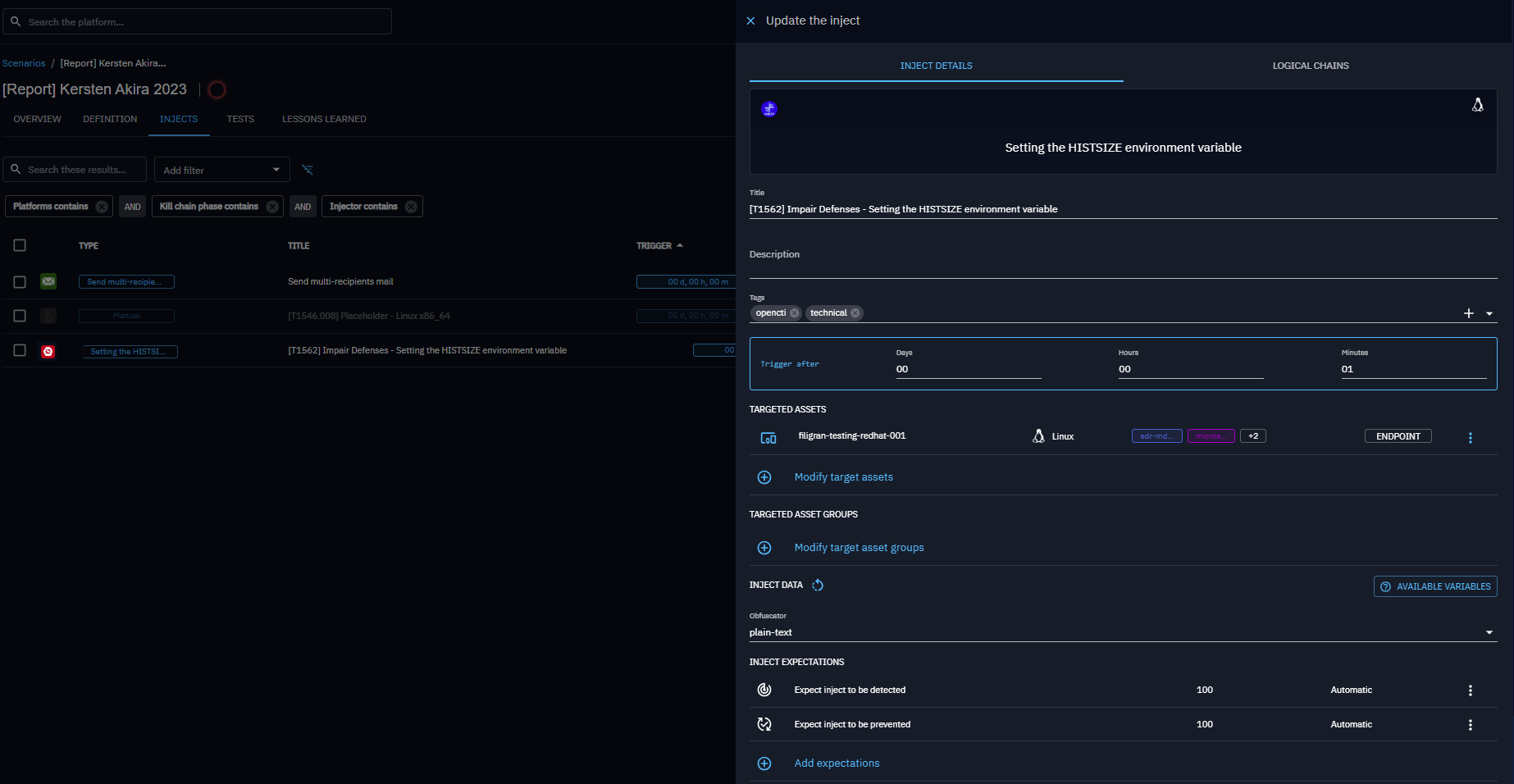

After the injects are generated, review and customize the Scenario to ensure it fits your organization’s specific needs. You will also need to assign appropriate Targets to each inject. Additionally, you can configure default Asset Groups for scenarios created from OpenCTI using the Default Asset Groups page.

• Finally, the Scenario will execute according to its configured schedule.

Execution and Reporting Back to OpenCTI

Once the scenario is finalized and scheduled:

• OpenAEV executes the scenario according to the periodicity.
• After simulation, the results are compiled into new SROs.
• OpenAEV sends these results back to OpenCTI as part of automated Enriched Security Posture Assessment in the same STIX 2.1 bundle representing the Security Coverage.

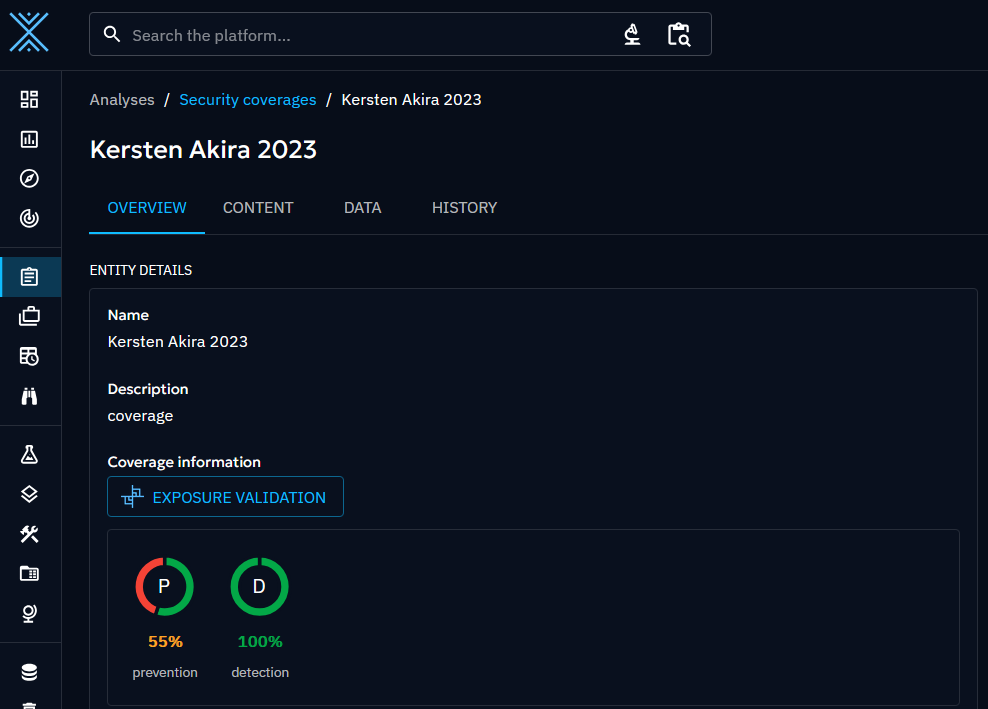

• OpenCTI displays the updated coverage assessment.

This creates a complete feedback loop between threat intelligence and security validation.

What’s next?

The next step is to expand the integration between OpenCTI and OpenAEV by incorporating additional threat intelligence data, such as Observables, Artifacts, Malware, and more.
