Overview

This page describes the OpenAEV architecture, its dependencies and the minimum resources to run it in production.

Docker deployment

To deploy OpenAEV alone with Docker, use the OpenAEV Docker repository. To deploy the full eXtended Threat Management (XTM) suite (OpenCTI, OpenAEV and XTM One), use the XTM Docker repository.

Architecture

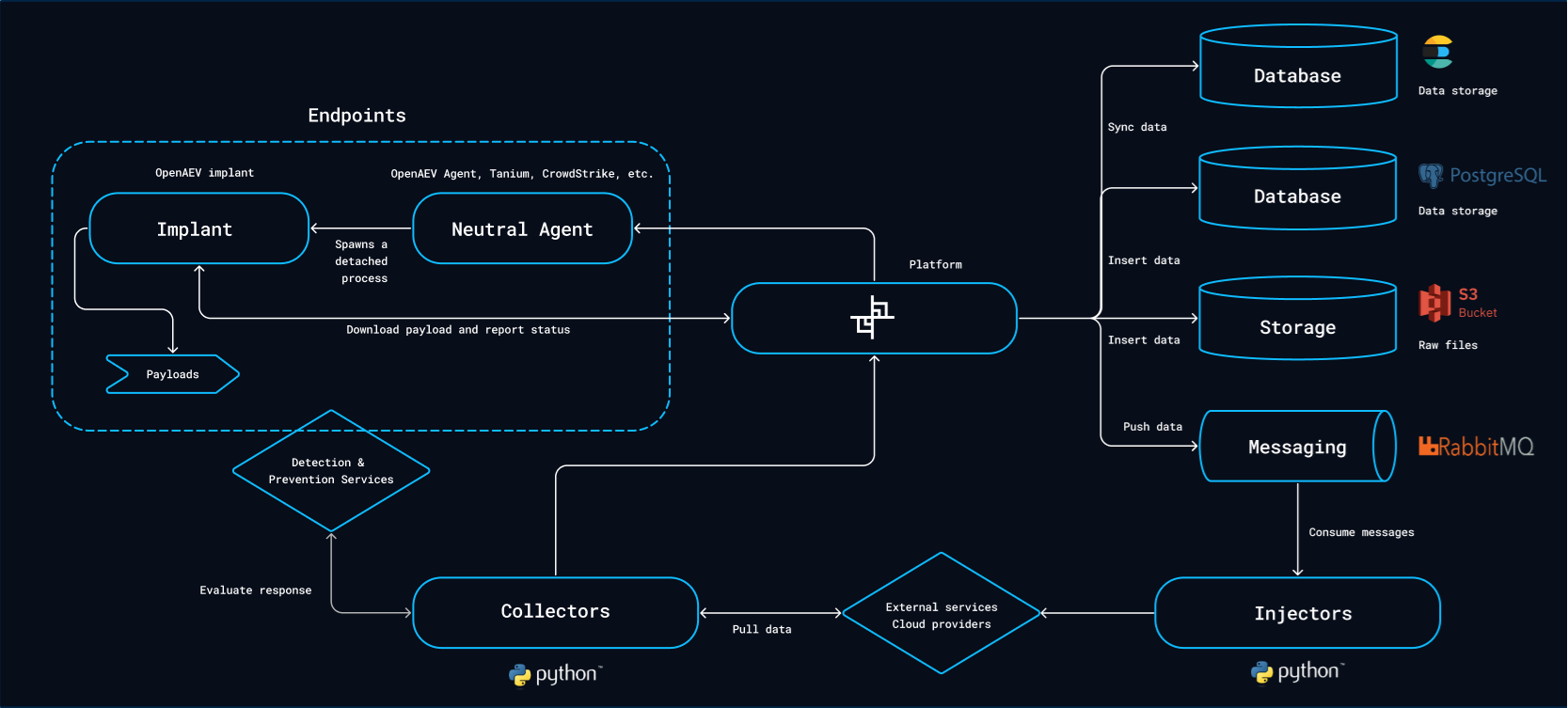

The OpenAEV platform relies on several external databases and services.

Architecture

Platform

The platform is the central component. Users configure Scenarios, Simulations, Atomic Tests and all the other components used to validate their security.

Agents and Executors

Executors launch simulated attacks on endpoints. OpenAEV ships its own agent and also supports third-party agents. See Executors.

Injectors

Injectors interact with third-party applications or services (including execution on endpoints through Executors) during a Simulation or an Atomic Test. A few Injectors are built in, most are standalone Python processes. See Deploy Injectors.

Collectors

Collectors connect to security systems such as SIEM (Security Information and Event Management), EDR (Endpoint Detection and Response), XDR (Extended Detection and Response), firewalls or mail gateways. They check whether an Inject was detected or prevented. See Deploy Collectors.

Infrastructure requirements

Dependencies

Component Recommended version CPU RAM Disk type Disk space
PostgreSQL ≥ 17.0 2 cores ≥ 8GB SSD ≥ 16GB
ElasticSearch ≥ 8.19 2 cores ≥ 8GB SSD ≥ 16GB
RabbitMQ >= 4.3 1 core ≥ 512MB Standard ≥ 2GB
S3 / Silo latest (Silo is a MinIO fork) 1 core ≥ 128MB SSD ≥ 16GB

Please note that while the versions of these dependencies are the recommended ones, OpenAEV may still function with earlier versions. However, we will not provide support for versions prior to the recommended ones.

Elasticsearch 9 and OpenSearch are also supported. The platform detects the engine behind engine.url at startup, there is nothing to configure (see Configuration).

Platform

Component CPU RAM Disk type Disk space
OpenAEV Core 2 cores ≥ 8GB None (stateless) -
Injector(s) 1 core ≥ 128MB None (stateless) -
Collector(s) 1 core ≥ 128MB None (stateless) -
