Configuration

This page lists the main configuration keys of the OpenAEV platform, as properties (manual deployment) and as environment variables (containers). All defaults live in the application.properties file.

Parameters equivalence

To get the environment variable, write the key in upper case and replace each dot (.) with an underscore (_).

For example:

spring.servlet.multipart.max-file-size=5GB

becomes:

SPRING_SERVLET_MULTIPART_MAX-FILE-SIZE=5GB

Platform

API & frontend

Basic parameters

Parameter Environment variable Default value Description
server.address SERVER_ADDRESS 0.0.0.0 Listen address of the application
server.port SERVER_PORT 8080 Listen port of the application
openaev.base-url OPENAEV_BASE-URL http://localhost:8080 Base URL of the application, used for some email links and as the default agent URL (agent installer scripts and executor commands) unless openaev.agent-url is set. In production environments, ensure this URL can be resolved from endpoints where agents will be deployed.
openaev.agent-url OPENAEV_AGENT-URL Optional URL agents use to reach the platform when it differs from openaev.base-url (reverse proxy, VPN, load balancer, network segregation). When unset, agent installer scripts and executor commands fall back to openaev.base-url.
server.servlet.session.timeout SERVER_SERVLET_SESSION_TIMEOUT 1440m Rolling session timeout: every request extends the session by this duration. Sessions are persisted in PostgreSQL and survive platform restarts
openaev.session-idle-timeout OPENAEV_SESSION-IDLE-TIMEOUT 0 Idle time before the UI locks the screen and asks the user to continue or log out (0 = disabled, e.g. 30m). Must be lower than the session timeout
openaev.session-cookie OPENAEV_SESSION-COOKIE false When true, the session cookie dies when the browser closes (server-side timeout still applies). When false, users stay logged in across browser restarts: the cookie is re-issued on every request (sliding Max-Age), so it only expires after openaev.cookie-duration of inactivity
openaev.session-cookie-same-site OPENAEV_SESSION-COOKIE-SAME-SITE SameSite attribute of the session cookie: None, Lax, Strict, or blank to omit it. Lax drops the cookie on POST login callbacks (SAML2, OpenID form_post); Strict breaks all SSO (Single Sign-On) callbacks. None forces the Secure flag, for HTTPS SSO deployments
openaev.cookie-secure OPENAEV_COOKIE-SECURE false Turn on if the access is done in HTTPS
openaev.cookie-duration OPENAEV_COOKIE-DURATION P1D Cookie validity sliding window (default 1 day). Each request re-issues the cookie with this Max-Age, so active users are never logged out by cookie expiration
openaev.admin.email OPENAEV_ADMIN_EMAIL required Login email of the admin user (for example admin@openaev.io)
openaev.admin.password OPENAEV_ADMIN_PASSWORD required Password of the admin user
openaev.admin.token OPENAEV_ADMIN_TOKEN required API token of the admin user (must be a valid UUIDv4)
openaev.admin.encryption_key OPENAEV_ADMIN_ENCRYPTION_KEY required Key used with the salt to derive the 256-bit key that encrypts sensitive data in the database
openaev.admin.encryption_salt OPENAEV_ADMIN_ENCRYPTION_SALT required Salt used with the encryption key. Must be at least 8 bytes long
openaev.healthcheck.key OPENAEV_HEALTHCHECK_KEY ChangeMe Key passed as health_access_key to the health check endpoint (/api/health). Change it in production
openaev.healthcheck.connectivity-probe-interval OPENAEV_HEALTHCHECK_CONNECTIVITY_PROBE_INTERVAL PT10S Interval between two background connectivity probes of the dependencies (ISO-8601 duration). /api/health serves the result of the last probe and never contacts a dependency itself; it answers 503 once a required dependency (database, RabbitMQ, file storage) is down or has not been probed for 3 intervals
openaev.healthcheck.storage-probe-interval OPENAEV_HEALTHCHECK_STORAGE_PROBE_INTERVAL PT4H Interval between two background computations of the storage sizes returned by /api/health?details=true and exported as openaev_storage_used_bytes (ISO-8601 duration). Computing them walks the whole object storage listing and queries the engine cluster, so low values are costly
openaev.metrics.key OPENAEV_METRICS_KEY empty Scrape key for /actuator/prometheus, sent by the scraper as Authorization: Bearer <key>. While empty (the default), every /actuator/** request is rejected with a 401
inject.execution.threshold.minutes INJECT_EXECUTION_THRESHOLD_MINUTES 10 Time in minutes OpenAEV waits for Agents to report back after an inject is sent. Agents that did not report get a TIMEOUT trace and the inject is set to ERROR or PARTIAL. Late starts are handled by openaev.scheduling.inject-staleness-threshold.
openaev.cron.config.agent.inactivity.monitor.interval OPENAEV_CRON_CONFIG_AGENT_INACTIVITY_MONITOR_INTERVAL 5 Polling interval in minutes for the agent inactivity monitor job.
openaev.run-mode OPENAEV_RUN-MODE normal Startup run mode (normal or safe). In safe, Quartz background processing is disabled. See Run modes.
openaev.starterpack.enabled OPENAEV_STARTERPACK_ENABLED true StarterPack feature, providing default endpoint, asset group, scenarios and dashboards
openaev.url.access.token.expiry-margin-days OPENAEV_URL_ACCESS_TOKEN_EXPIRY-MARGIN-DAYS 7 Number of days added after an exercise end date before URL access tokens expire
openaev.url.access.token.retention-days OPENAEV_URL_ACCESS_TOKEN_RETENTION-DAYS 30 Number of days to retain expired or revoked URL access tokens before the purge job deletes them
openaev.retention.execution-traces.retention-days OPENAEV_RETENTION_EXECUTION-TRACES_RETENTION-DAYS 0 Number of days to keep execution traces (one row per agent execution message). 0 disables the purge job

Admin settings are mandatory

  • On first start, the platform stops if the admin email, password or token is missing. Later starts keep the stored values.
  • An invalid admin email or token stops every start.
  • A missing encryption_key or encryption_salt stops every start.

Use strong, unique secrets, never ChangeMe.

Network and security

Parameter Environment variable Default value Description
server.ssl.enabled SERVER_SSL_ENABLED false Turn on to enable SSL on the local server
server.ssl.key-store-type SERVER_SSL_KEY-STORE-TYPE PKCS12 Type of SSL keystore
server.ssl.key-store SERVER_SSL_KEY-STORE classpath:localhost.p12 SSL keystore path
server.ssl.key-store-password SERVER_SSL_KEY-STORE-PASSWORD admin SSL keystore password
server.ssl.key-alias SERVER_SSL_KEY-ALIAS localhost SSL key alias
openaev.unsecured-certificate OPENAEV_UNSECURED-CERTIFICATE false Turn on to accept self-signed or insecure SSL certificates
openaev.with-proxy OPENAEV_WITH-PROXY false Turn on for environments that use a proxy
openaev.extra-trusted-certs-dir OPENAEV_EXTRA-TRUSTED-CERTS-DIR Local folder with extra trusted TLS certificates (public .pem files) to reach external applications such as CrowdStrike, Tanium or SentinelOne. With Docker, uncomment the volume in the docker compose file and set this value
openaev.notification.webhook-allow-internal-targets OPENAEV_NOTIFICATION_WEBHOOK-ALLOW-INTERNAL-TARGETS false Turn on to let webhook notifiers call internal or private addresses. This skips the SSRF (Server-Side Request Forgery) check on private addresses; scheme, host and HTTP verb checks still apply
openaev.theme.asset-allow-internal-targets OPENAEV_THEME_ASSET-ALLOW-INTERNAL-TARGETS false Turn on to let theme logo and image URLs point at internal or private addresses, for on-premise networks with no public place to host a logo. This skips the SSRF (Server-Side Request Forgery) check on private addresses, both when the theme is saved and when reports are rendered, where it applies to every external resource the renderer loads. The URL must still use https and have a host

Extra trusted certificates format

Certificates in openaev.extra-trusted-certs-dir must be public PEM-armoured (*.pem), DER-encoded X509 certificates.

Rate limiting

Preview feature

Rate limiting only applies when RATE_LIMITING is listed in openaev.enabled-dev-features.

Parameter Environment variable Default value Description
openaev.ratelimit.enabled OPENAEV_RATELIMIT_ENABLED true Turn on to enable global rate limiting on the REST API
openaev.ratelimit.store-backend OPENAEV_RATELIMIT_STORE-BACKEND IN_MEMORY Rate limit bucket store backend. Only IN_MEMORY is available.
openaev.ratelimit.default-rps OPENAEV_RATELIMIT_DEFAULT-RPS 10 Maximum requests per second for unauthenticated requests, segmented per originating IP address.
openaev.ratelimit.authenticated-rps OPENAEV_RATELIMIT_AUTHENTICATED-RPS 300 Maximum requests per second for authenticated requests, segmented per user account.

Logging

Parameter Environment variable Default value Description
logging.level.root LOGGING_LEVEL_ROOT fatal Root log level
logging.level.io.openaev LOGGING_LEVEL_IO_OPENAEV error OpenAEV log level
logging.file.name LOGGING_FILE_NAME ./logs/openaev.log Log file path (in addition to console output)
logging.logback.rollingpolicy.max-file-size LOGGING_LOGBACK_ROLLINGPOLICY_MAX-FILE-SIZE 10MB Rolling max file size
logging.logback.rollingpolicy.max-history LOGGING_LOGBACK_ROLLINGPOLICY_MAX-HISTORY 7 Rolling max days

Audit logging

Audit logging records the actions performed through the API, and some actions the platform performs on its own.

Modifying actions only

Only modifying API calls are logged (create, update, delete, duplicate, launch). Reading actions are not logged, except when access is denied.

Since OpenAEV 3.260917.1, audit logs also record the following events:

Event event_type event_scope event_status Description
Expectation result execution expectation_result success A Collector, a security platform or the expectation expiration manager sets the result of an expectation. The context holds the Inject, the expectation type, the result and its source.
Agent inactive execution coverage_gap warning An agent sent no heartbeat for 1 hour and becomes inactive. The check runs every openaev.cron.config.agent.inactivity.monitor.interval minutes. The context holds the agent, its Endpoint and its last heartbeat.
Connector activity mutation create or update success Registration of a Collector, Injector or Executor, and health checks of connector instances. Collector, Injector and connector instance calls that change nothing significant (heartbeats) are not logged, nor are XTM Composer connectivity checks and connector logs.
Parameter Environment variable Default value Description
openaev.audit-logs.transports OPENAEV_AUDIT-LOGS_TRANSPORTS Comma-separated list of transports: file, console. Empty disables audit logging. engine is accepted but not usable yet
openaev.audit-logs.halt-on-failure OPENAEV_AUDIT-LOGS_HALT-ON-FAILURE false Stop the platform when audit logging fails
logging.level.io.openaev.utils.log LOGGING_LEVEL_IO_OPENAEV_UTILS_LOG Log level of the console audit transport. The file transport always logs at INFO
openaev.audit-logs.file.dir OPENAEV_AUDIT-LOGS_FILE_DIR logs Audit log directory for the file transport
openaev.audit-logs.file.filename OPENAEV_AUDIT-LOGS_FILE_FILENAME audit Audit log basename (without extension) for the file transport
openaev.audit-logs.file.retention-days OPENAEV_AUDIT-LOGS_FILE_RETENTION-DAYS 365 Number of days of rolled audit log files to keep
openaev.audit-logs.file.rollover-max-size OPENAEV_AUDIT-LOGS_FILE_ROLLOVER-MAX-SIZE 100MB Maximum size of one audit log file before rollover
openaev.audit-logs.file.rollover-total-size-cap OPENAEV_AUDIT-LOGS_FILE_ROLLOVER-TOTAL-SIZE-CAP 20GB Maximum total size of the audit log files. The oldest files are deleted first
AUDIT_LOG_DIR logs Legacy compatibility env var for the audit log directory. When set, it overrides openaev.audit-logs.file.dir.
AUDIT_LOG_FILENAME audit Legacy compatibility env var for the audit log basename. When set, it overrides openaev.audit-logs.file.filename; audit and audit.log are accepted.

Inject execution

The inject execution engine runs the actions described in the Injector contracts registered in OpenAEV.

Parameter Environment variable Default value Description
openaev.scheduling.inject-staleness-threshold OPENAEV_SCHEDULING_INJECT-STALENESS-THRESHOLD 4 Grace period in minutes after the start time of a time-based Inject, during which it can still run. Past this period, the Inject is set in error. Values below 1 are treated as 1.

Credential status validation

A scheduled job re-checks the stored credentials against their cloud provider and records the result, so you see a revoked or expired credential before a Simulation fails on it.

The job runs per Tenant and only checks credentials whose status is stale, up to a per-run limit. Credential types with no remote counterpart (username/password, hash) are never checked and keep the UNSET status.

Parameter Environment variable Default value Description
openaev.credentials.status-validation.enabled OPENAEV_CREDENTIALS_STATUS-VALIDATION_ENABLED true Enables the credential status validation job. When false, the job returns immediately and writes nothing.
openaev.credentials.status-validation.cron OPENAEV_CREDENTIALS_STATUS-VALIDATION_CRON 0 */6 * * * ? Quartz cron expression driving the job. The default runs every 6 minutes. Each run makes one outbound call per stale credential.
openaev.credentials.status-validation.revalidate-after-days OPENAEV_CREDENTIALS_STATUS-VALIDATION_REVALIDATE-AFTER-DAYS 1 How long a credential status stays fresh. Past this age the credential is checked again.
openaev.credentials.status-validation.max-per-run OPENAEV_CREDENTIALS_STATUS-VALIDATION_MAX-PER-RUN 500 Maximum number of credentials checked per tenant and per run. Oldest verification first.
openaev.credentials.status-validation.timeout-seconds OPENAEV_CREDENTIALS_STATUS-VALIDATION_TIMEOUT-SECONDS 10 Per-call budget for a single provider probe. A probe exceeding it is inconclusive, not a rejection.

Report rendering

The platform renders reports server-side with a headless Chromium browser.

Parameter Environment variable Default value Description
openaev.reporting.render-timeout-seconds OPENAEV_REPORTING_RENDER-TIMEOUT-SECONDS 90 Maximum duration of a single render, in seconds
openaev.reporting.max-concurrent-renders OPENAEV_REPORTING_MAX-CONCURRENT-RENDERS 2 Maximum number of simultaneous browser contexts. Bounds Chromium memory usage
openaev.reporting.render-base-url OPENAEV_REPORTING_RENDER-BASE-URL URL the headless browser uses to reach the platform. Empty uses loopback (http(s)://localhost:{server.port}). Override only when loopback does not serve the UI

Dependencies

XTM Suite: OpenCTI

Each OpenCTI connection is scoped to an OpenAEV tenant, identified by its UUID ({id}).

Parameter Environment variable Default value Description
openaev.xtm.opencti.{id}.enable OPENAEV_XTM_OPENCTI_{id}_ENABLE false Enable this OpenCTI connection
openaev.xtm.opencti.{id}.url OPENAEV_XTM_OPENCTI_{id}_URL OpenCTI instance URL
openaev.xtm.opencti.{id}.api_url OPENAEV_XTM_OPENCTI_{id}_API_URL OpenCTI API URL — completely overrides the base URL. Defaults to openaev.xtm.opencti.{id}.url + /graphql
openaev.xtm.opencti.{id}.token OPENAEV_XTM_OPENCTI_{id}_TOKEN OpenCTI API token

XTM Suite: XTM Hub

Parameter Environment variable Default value Description
openaev.xtm.hub.enable OPENAEV_XTM_HUB_ENABLE true Enables integration with XTM Hub
openaev.xtm.hub.url OPENAEV_XTM_HUB_URL https://hub.filigran.io XTM Hub URL
openaev.xtm.hub.override-api-url OPENAEV_XTM_HUB_OVERRIDE_API_URL When specified, override openaev.xtm.hub.url during backend calls
openaev.xtm.hub.collector.enable OPENAEV_XTM_HUB_COLLECTOR_ENABLE false Enables the XTM Hub connectivity collector
openaev.xtm.hub.collector.id OPENAEV_XTM_HUB_COLLECTOR_ID b402f1f5-29ba-4ee3-b366-f0467754cf4e Identifier of the XTM Hub connectivity collector
openaev.xtm.hub.collector.connectivity-check-interval OPENAEV_XTM_HUB_COLLECTOR_CONNECTIVITY_CHECK_INTERVAL 3600000 (1 hour) Interval in milliseconds at which the connectivity with XTM Hub is checked

XTM Suite: XTM One

Parameter Environment variable Default value Description
openaev.xtm.one.url OPENAEV_XTM_ONE_URL XTM One URL, as reachable from OpenAEV (an internal address such as http://xtm-one:4000 in Docker works)
openaev.xtm.one.token OPENAEV_XTM_ONE_TOKEN XTM One registration token. With the URL, OpenAEV registers with XTM One every 5 minutes

OpenAEV and XTM One sign their requests to each other with short-lived tokens:

  • OpenAEV reads XTM One's public identity (its BASE_URL) and signing keys from /xtm/auth/metadata on openaev.xtm.one.url, so this URL can be an internal address.
  • The links that open XTM One in the browser also use this public identity. OpenAEV refreshes it with the 5-minute registration, at most once an hour, and keeps the last known value while XTM One is unreachable.
  • On the XTM One side, set OPENAEV_API_URL to the address XTM One uses to reach OpenAEV.
  • Keep openaev.base-url as the public URL of OpenAEV: XTM One trusts it as OpenAEV's identity and token audience.

PostgreSQL

Parameter Environment variable Default value Description
spring.datasource.url SPRING_DATASOURCE_URL jdbc:postgresql://localhost:5432/openaev URL of the PostgreSQL database
spring.datasource.username SPRING_DATASOURCE_USERNAME openaev Login for the database
spring.datasource.password SPRING_DATASOURCE_PASSWORD openaev Password for the database
spring.datasource.hikari.maximum-pool-size SPRING_DATASOURCE_HIKARI_MAXIMUM-POOL-SIZE 20 Maximum number of database connections in the pool

Engine

OpenAEV stores and searches data in Elasticsearch or OpenSearch. The default selector elk targets Elasticsearch 8 (8.19 or later). Elasticsearch 9 is also supported with engine.engine-selector=elk9.

With classic authentication, use Elasticsearch or OpenSearch:

Parameter Environment variable Default value Description
engine.engine-aws-mode ENGINE_ENGINE_AWS_MODE no Classic authentication (no)
engine.engine-selector ENGINE_ENGINE_SELECTOR elk Engine to use: elk (Elasticsearch 8, default), elk9 (Elasticsearch 9) or opensearch (OpenSearch)
engine.url ENGINE_URL http://localhost:9200 URL of the engine
engine.username ENGINE_USERNAME Optional. Login for the engine
engine.password ENGINE_PASSWORD Optional. Password for the engine
engine.index-prefix ENGINE_INDEX-PREFIX openaev Prefix of the index and lifecycle policy names

With AWS SigV4 authentication, use Amazon OpenSearch or Amazon OpenSearch Serverless:

Parameter Environment variable Default value Description
engine.engine-aws-mode ENGINE_ENGINE_AWS_MODE Whether to use AWS SigV4 authentication Amazon OpenSearch or Amazon OpenSearch Serverless (es or aoss)
engine.engine-selector ENGINE_ENGINE_SELECTOR Engine to use for storage and search (opensearch for OpenSearch)
engine.engine-aws-host ENGINE_ENGINE_AWS_HOST URL of the OpenSearch database, no http(s) prefix
engine.engine-aws-region ENGINE_ENGINE_AWS_REGION Example: eu-west-3

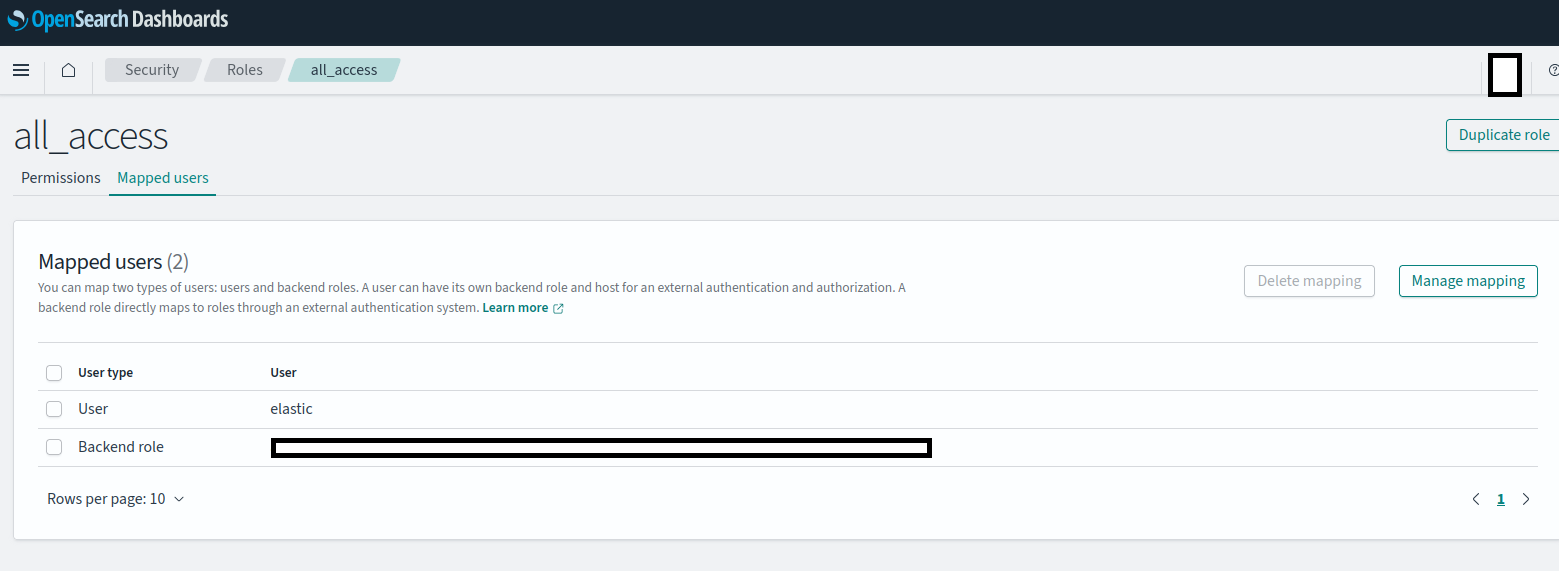

Adding the needed authorization to AWS OpenSearch

  • Connect to your AWS opensearch dashboard
  • Navigate to Security, Role
  • Click on “all_access” role, and “Mapped users” tab
  • Add as Backend role the IAM role for your EKS node
  • Backend role mapping in AWS OpenSearch

Tuning parameters applicable to both engines:

Parameter Environment variable Default value Description
engine.indexing-grace-window-seconds ENGINE_INDEXING_GRACE_WINDOW_SECONDS 60 Indexing cursor grace window in seconds. The cursor persisted after each indexing round never gets closer to wall-clock than this window, so rows committed late by long write transactions are still indexed. Must exceed the longest expected write transaction.
engine.indexing-misfire-threshold-ms ENGINE_INDEXING_MISFIRE_THRESHOLD_MS 120000 Threshold in milliseconds after which a model synchronisation is declared misfired and is rescheduled.
engine.indexing-reset-epoch-reassert-delay-seconds ENGINE_INDEXING_RESET_EPOCH_REASSERT_DELAY_SECONDS 180 Delay in seconds after which an instance that reset an index during a rolling deploy re-asserts the indexing cursor of that model, so a stale cursor written by an instance still running an older version does not skip rows. Must exceed the longest indexing round. Set to 0 to disable once every instance runs OpenAEV 3.261001.0 or later.

Switching engines

After you change engine.engine-selector, delete the indexing_status table in PostgreSQL to trigger a full reindex.

RabbitMQ

Parameter Environment variable Default value Description
openaev.rabbitmq.prefix OPENAEV_RABBITMQ_PREFIX openaev Prefix for the queue names
openaev.rabbitmq.hostname OPENAEV_RABBITMQ_HOSTNAME localhost Hostname of the RabbitMQ server
openaev.rabbitmq.vhost OPENAEV_RABBITMQ_VHOST / Vhost of the RabbitMQ server
openaev.rabbitmq.port OPENAEV_RABBITMQ_PORT 5672 Port of the RabbitMQ Server
openaev.rabbitmq.management-port OPENAEV_RABBITMQ_MANAGEMENT-PORT 15672 Management port of the RabbitMQ Server
openaev.rabbitmq.ssl OPENAEV_RABBITMQ_SSL false Use SSL
openaev.rabbitmq.user OPENAEV_RABBITMQ_USER guest RabbitMQ user
openaev.rabbitmq.pass OPENAEV_RABBITMQ_PASS guest RabbitMQ password
openaev.rabbitmq.queue-type OPENAEV_RABBITMQ_QUEUE-TYPE classic RabbitMQ Queue Type ("classic" or "quorum")
openaev.rabbitmq.management-insecure OPENAEV_RABBITMQ_MANAGEMENT-INSECURE true Whether or not the calls to the management plugin of rabbitmq can be insecure
openaev.rabbitmq.trust-store OPENAEV_RABBITMQ_TRUST_STORE Path to the p12 trust store (for example file:/path/to/truststore.p12) with the CA of the RabbitMQ server certificate. Used when SSL is on. When empty, the JVM default trust store applies.
openaev.rabbitmq.trust-store-password OPENAEV_RABBITMQ_TRUST-STORE-PASSWORD Password of the keystore
openaev.rabbitmq.publish-timeout-ms OPENAEV_RABBITMQ_PUBLISH-TIMEOUT-MS 30000 Hard cap in milliseconds on a single publish, so a broker that stops answering cannot hold a database transaction open. Must be strictly positive, otherwise the default applies.

S3 bucket

Parameter Environment variable Default value Description
minio.endpoint MINIO_ENDPOINT localhost Hostname of the S3 service. For AWS S3, for example s3.us-east-1.amazonaws.com
minio.port MINIO_PORT 9000 Port of the S3 service. For AWS S3 over HTTPS, usually 443
minio.secure MINIO_SECURE false Turn on when the S3 service uses TLS (for example AWS S3 over HTTPS)
minio.access-key MINIO_ACCESS-KEY key Access key for the S3 service
minio.access-secret MINIO_ACCESS-SECRET secret Secret key for the S3 service
minio.bucket MINIO_BUCKET openaev S3 bucket name. Created at startup if missing
openaev.s3.use-aws-role OPENAEV_S3_USE-AWS-ROLE false Use the AWS IAM role of the host, through AWS STS (Security Token Service), instead of access keys
openaev.s3.sts-endpoint OPENAEV_S3_STS-ENDPOINT experimental Optional custom STS endpoint. When empty, OpenAEV uses the global AWS STS endpoint (https://sts.amazonaws.com), or the regional one when AWS_REGION is set

Agents (executors)

To run actions on endpoints, you need at least one neutral Executor. It runs implants as detached processes, and the implants run the Threat Arsenal actions.

Parameter Environment variable Default value Description
executor.openaev.agent.max-simultaneous-jobs EXECUTOR_OPENAEV_AGENT_MAX-SIMULTANEOUS-JOBS 5 Maximum number of simultaneous jobs per agent, to avoid overloading the endpoint
executor.openaev.agent.auto-update-enabled EXECUTOR_OPENAEV_AGENT_AUTO-UPDATE-ENABLED true When false, the platform does not queue agent upgrade jobs. Only applies with an active Enterprise Edition license
openaev.agent.queue-threshold OPENAEV_AGENT_QUEUE-THRESHOLD 0 Max number of pending jobs per agent before marking it overloaded. 0 disables the check.
OpenAEV Agent

The OpenAEV agent is enabled by default and cannot be disabled. It is available for:

  • Windows (x86_64 / arm64)
  • Linux (x86_64 / arm64)
  • MacOS (x86_64 / arm64)
Other executors

See the Executors documentation for the other available Executors.

Mail services

The platform sends emails with SMTP (Simple Mail Transfer Protocol) and synchronizes mailboxes with IMAP (Internet Message Access Protocol).

Gmail two-factor authentication

With two-factor authentication on a Gmail account, SMTP and IMAP need an app-specific password.

General

These mandatory parameters set the default sender identity of new Scenarios and Simulations, whatever the mail transport.

Parameter Environment variable Default value Description
openaev.default-mailer OPENAEV_DEFAULT-MAILER no-reply@openaev.io Default sender email address, used to pre-fill new Scenarios/Simulations. It is read-only in the UI to prevent spoofing; only the sender name below can be edited from the UI
openaev.default-mailer-name OPENAEV_DEFAULT-MAILER-NAME no-reply Default sender display name ("Sender email from"), pre-fills the sender name on new Scenario/Simulation creation. Editable per-Scenario/Simulation afterwards in the UI
openaev.default-reply-to OPENAEV_DEFAULT-REPLY-TO contact@openaev.io Default Reply-To address used on outgoing emails
SMTP
Parameter Environment variable Default value Description
openaev.listener.smtp.enabled OPENAEV_LISTENER_SMTP_ENABLED true SMTP connection monitoring, enabled by default. Allow you to monitor service state from healthchecks and settings page
spring.mail.host SPRING_MAIL_HOST smtp.gmail.com SMTP Server hostname
spring.mail.port SPRING_MAIL_PORT 587 SMTP Server port
spring.mail.username SPRING_MAIL_USERNAME username@mail.com SMTP Server username
spring.mail.password SPRING_MAIL_PASSWORD password SMTP Server password
Parameter Environment variable Default value Description
spring.mail.properties.mail.smtp.ssl.enable SPRING_MAIL_PROPERTIES_MAIL_SMTP_SSL_ENABLE false Turn on SMTP SSL mode
spring.mail.properties.mail.smtp.ssl.trust SPRING_MAIL_PROPERTIES_MAIL_SMTP_SSL_TRUST * Trust unverified certificates
spring.mail.properties.mail.smtp.auth SPRING_MAIL_PROPERTIES_MAIL_SMTP_AUTH true Turn on SMTP authentication
spring.mail.properties.mail.smtp.starttls.enable SPRING_MAIL_PROPERTIES_MAIL_SMTP_STARTTLS_ENABLE true Turn on SMTP STARTTLS

Gmail

The defaults match Gmail (port 587 with STARTTLS). Set your Gmail address as username and an app-specific password as password.

IMAP
Parameter Environment variable Default value Description
openaev.mail.imap.enabled OPENAEV_MAIL_IMAP_ENABLED false Turn on to enable IMAP mail synchronization. Injector email must be well configured
openaev.mail.imap.host OPENAEV_MAIL_IMAP_HOST imap.mail.com IMAP Server hostname
openaev.mail.imap.port OPENAEV_MAIL_IMAP_PORT 993 IMAP Server port
openaev.mail.imap.username OPENAEV_MAIL_IMAP_USERNAME username@mail.com IMAP Server username
openaev.mail.imap.password OPENAEV_MAIL_IMAP_PASSWORD password IMAP Server password
openaev.mail.imap.inbox OPENAEV_MAIL_IMAP_INBOX INBOX IMAP inbox directory to synchronize from
openaev.mail.imap.sent OPENAEV_MAIL_IMAP_SENT Sent IMAP sent directory to synchronize from
Parameter Environment variable Default value Description
openaev.mail.imap.ssl.enable OPENAEV_MAIL_IMAP_SSL_ENABLE true Turn on IMAP SSL mode
openaev.mail.imap.ssl.trust OPENAEV_MAIL_IMAP_SSL_TRUST * Trust unverified certificates
openaev.mail.imap.auth OPENAEV_MAIL_IMAP_AUTH true Turn on IMAP authentication
openaev.mail.imap.starttls.enable OPENAEV_MAIL_IMAP_STARTTLS_ENABLE false Turn on IMAP STARTTLS

Gmail

Keep the other defaults and set:

openaev.mail.imap.enabled=true
openaev.mail.imap.host=imap.gmail.com
openaev.mail.imap.username=username@gmail.com
openaev.mail.imap.password=<app-specific password>
openaev.mail.imap.sent=[Gmail]/Sent Mail

AI service

AI deployment and cloud services

Enterprise Edition customers can use OpenAEV AI endpoints in several ways:

  • The Filigran AI Service, with the token given by the support team.
  • OpenAI or MistralAI cloud endpoints, with your own tokens.
  • Local AI endpoints (Filigran can provide the custom model).
Parameter Environment variable Default value Description
ai.enabled AI_ENABLED false Enable AI capabilities
ai.type AI_TYPE mistralai AI type (mistralai or openai)
ai.endpoint AI_ENDPOINT Endpoint URL. Required when AI is enabled
ai.token AI_TOKEN Token for endpoint credentials
ai.model AI_MODEL mistral Model to be used for text generation (depending on type)
ai.model_images AI_MODEL_IMAGES Model to be used for image generation (depending on type)

What's next?
